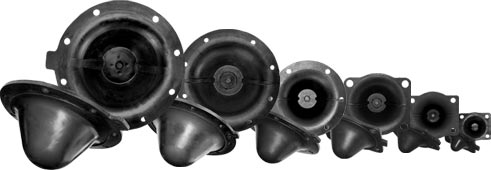

Replacement Weir Diaphragms for use in Saunders® Diaphragm Valves
GIE, Inc. now manufacturers quality Replacement Valve Body Diaphragms for use in Saunders® Weir Style and Straightway Diaphragm Valves.
Designed to meet or exceed the original equipment manufacturers specifications of fit, form and function, these diaphragms are completely interchangeable. Diaphragms are competitively priced and are in stock and available for immediate shipment.
GIE, Inc. also manufactures a 1 piece Teflon (PTFE) faced EPDM diaphragm that is completely interchangeable with Elastomer diaphragms in sizes 1″ thru 8″. This means that you can now upgrade existing valves with elastomer diaphragms to Teflon (PTFE) without purchasing a complete new bonnet assembly.

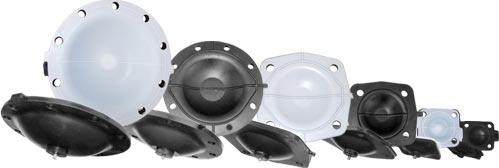

Diaphragms are available in sizes 1/2″ through 12″ in the following materials:
3/4″ Chlorobutyl
1″ Teflon (PTFE)
with EPDM backing
2″ EPDM
3″ Teflon (PTFE)
Faced EPDM
4″ Hypalon
6″ Teflon (PTFE)
with Butyl backing
MATERIALS
MATERIALS | SIZE RANGE | TEMP. RANGE |
Teflon* (PTFE) | 1/2″ through 8″ | – 22 F to 347 F |
Teflon* (PTFE) | 1/2″ through 8″ | – 22 F to 300 F |
Teflon* (PTFE) with Viton* backing | 1/2″ through 8″ | – 4 F to 347 F |
EPDM | 1/2″ through 12″ | -30 F to 300 F |
Neoprene | 1/2″ through 12″ | – 20 F to 200 F |
Hypalon* | 1/2″ through 12″ | 0 F to 225 F |
Natural Rubber | 1/2″ through 12″ | -20 F to 200 F |
Chlorobutyl | 1/2″ through 12″ | -20 F to 265 F |
Buna N | 1/2″ through 12″ | -5 F to 212 F |
Viton | 1/2″ through 12″ | 0 F to 300 F |
Teflon Faced EPDM | 1/2″ through 12″ | – 20 F to 300 F |
Note: Most GIE Inc. Valve Bodies and Bonnet Assemblies are also directly interchangeable with Saunders® valve bodies and bonnet assemblies.
Diaphragms are manufactured by GIE Inc., Inc. and are not Saunders® Diaphragms. Saunders® is a registered trademark of Crane Process Flow Technologies Ltd.
* Viton and Hypalon are registered E. I. DuPont

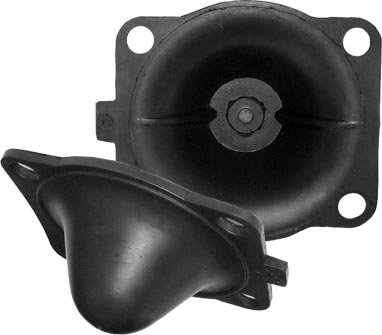

Replacement Straightway Diaphragms for use in Saunders® Diaphragm Valves
GIE, Inc. now offers quality replacement valve body diaphragms for use in Saunders® KB style Straightway and High Flow style Straightway diaphragm valves.
Designed to meet or exceed the original equipment manufacturers specifications of fit, form and function, these diaphragms are completely interchangeable. Diaphragms are competitively priced and are in stock, available for immediate shipment.
Diaphragms are available in sizes 1/2″ thru 12″ in the following materials.
1″ Hypalon
2″ Chlorobutyl
3″ Neoprene
4″ EPDM
6″ Natural Rubber
8″ Chlorobutyl
MATERIALS
MATERIALS | SIZE RANGE | TEMP. RANGE |
EPDM | 1/2″ through 12″ | -40 F to 270 F |
Neoprene | 1/2″ through 12″ | -4 F to 194 F |
Hypalon* | 1/2″ through 12″ | -14 F to 194 F |
Natural Rubber | 1/2″ through 12″ | -22 F to 194 F |
Chlorobutyl | 1/2″ through 12″ | -4 F to 248 F |
Buna N | 1/2″ through 12″ | -4 F to 194 F |
Viton* | 1″ through 4″ | 32 F to 248 F |
Note: Most GIE, Inc. Valve Bodies and Bonnet Assemblies are also directly interchangeable with Saunders® valve bodies and bonnet assemblies.
Diaphragms are manufactured by GIE, Inc. and are not Saunders® Diaphragms. Saunders® is a registered trademark of Crane Process Flow Technologies Ltd.
* Viton is registered E.I. DuPont.
